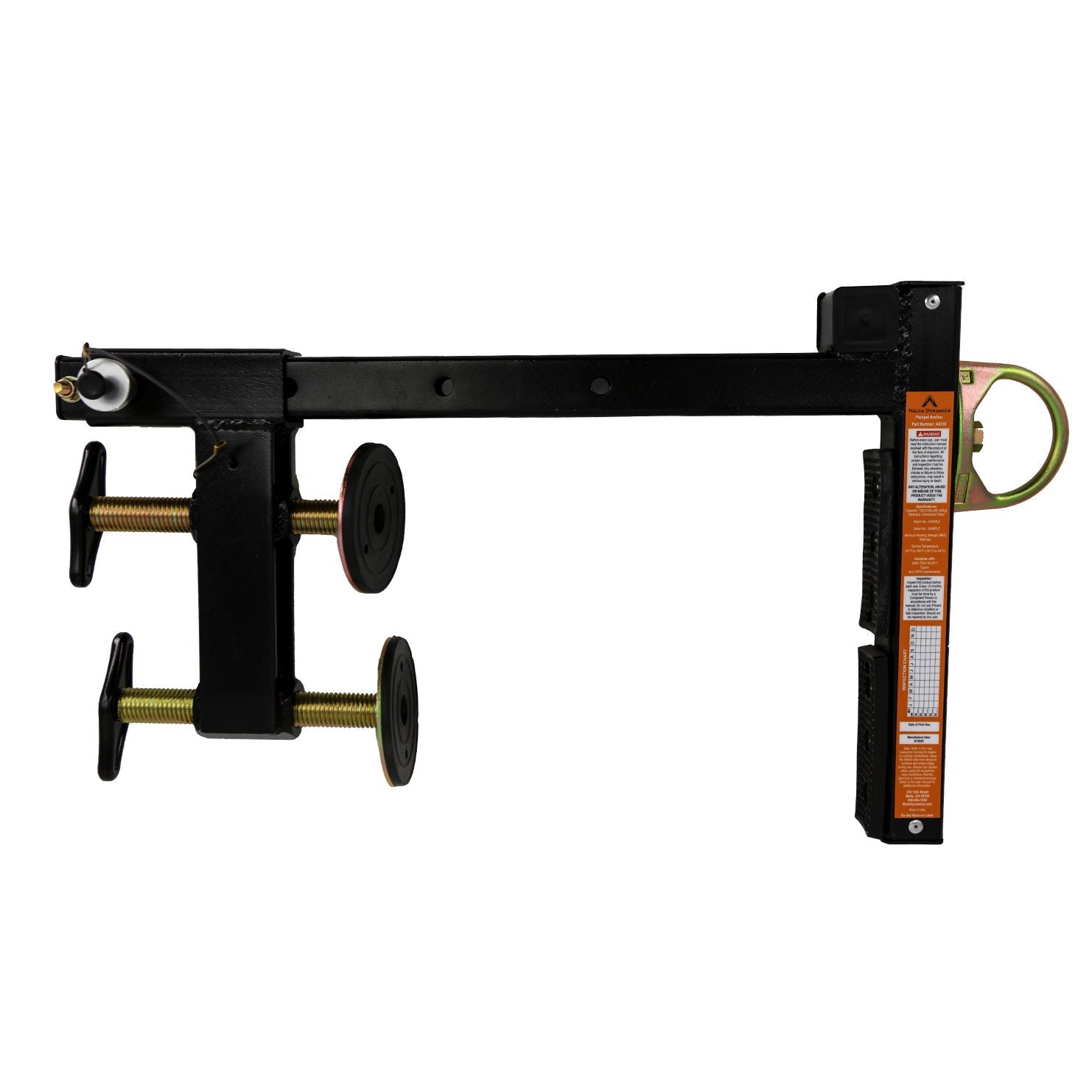

Parapet Anchor

Does your jobsite feature a flat roof surrounded by a parapet wall? If it does, then you need a way to anchor your self-retracting lifelines (SRLs). This Malta Dynamics parapet clamp system allows you to put your SRL in place with a sturdy connection that helps support weight and keep your workers safe. The reusable device is easy to install and won't cause damage to the wall. Your workers can use this parapet anchor on walls varying in thickness from 2.36" to 14.1".

On a jobsite, time is critical, but you never want to compromise your workers' safety. Equipment that offers intuitive usage is the best type to have on your site, as it cuts back on time without putting your employees in danger. It takes just a minute or two to secure the parapet clamp, and your workers can adjust it to reposition around the worksite.

You can feel confident in the sturdiness of the design. This temporary parapet edge protection provides a practical solution in areas where you otherwise couldn't use an SRL.

Put Safety First When You Use This Parapet Grabber

The anchor comes with specific directions for installation and application. Ensure your workers read and understand the instructions, as their safety depends on using the parapet clamp correctly. For example, you need a minimum wall height of 9' to use this parapet anchor.

Instructions for Installation of Parapet Clamp Fall Protection

The Parapet Anchor is intended to be installed on a parapet wall up to 14.1 inches (360mm) thick.

1. Unscrew the set screws so the points do not protrude into the anchor slot.
2. Remove the detent pin and move the adjustable arm back far enough to allow the clamp to fit over the parapet wall.
3. Make sure the top surface within the anchor slot is fully seated on the parapet wall.
4. Slide the adjustable arm toward the parapet wall and reinsert the locking pin through the position setting holes.
5. Tighten each set screw until it makes contact with the parapet wall. Hand tighten the screws until snug. Excessive torque can damage the parapet wall or the parapet wall anchor.

Remain in Compliance With Products From Malta Dynamics

Malta Dynamics designs its equipment with your workers in mind. Everything it makes is easy and intuitive to use, with employee comfort built into the engineering and manufacturing process.

All Malta Dynamics equipment is OSHA compliant, engineered to meet federal and local guidelines. If you need equipment to anchor your SRLs, you can order this parapet anchor today from Gilchrist Safety Solutions, an authorized Malta Dynamics distributor. For more information, call 919-306-0255.
